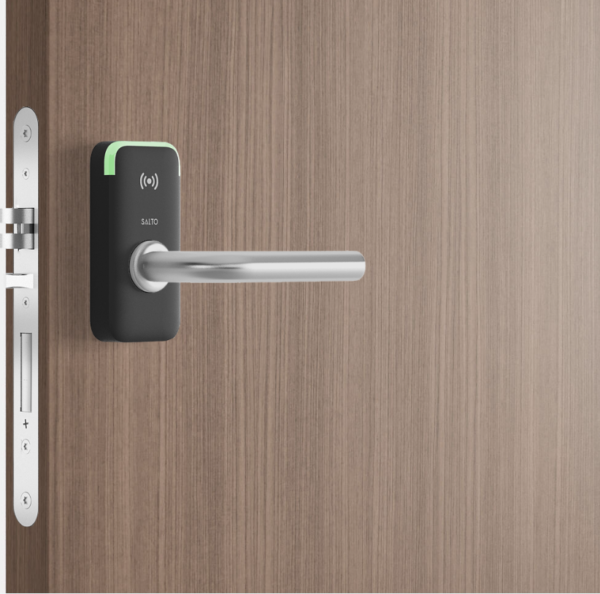

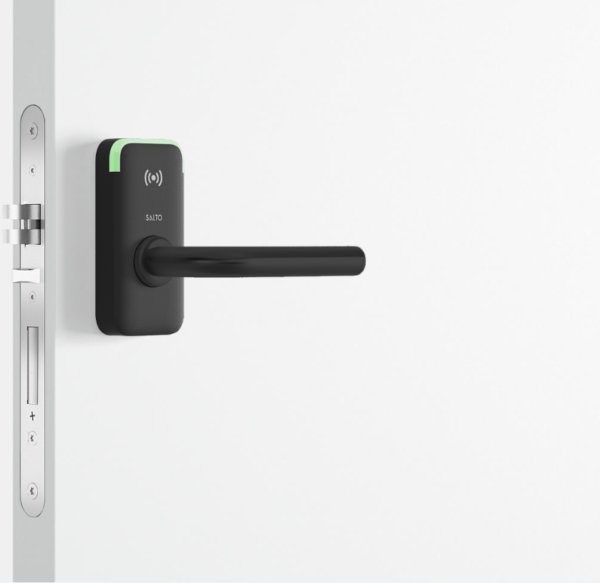

Simple installation using just two screws when installing on new or existing European / DIN door standards.

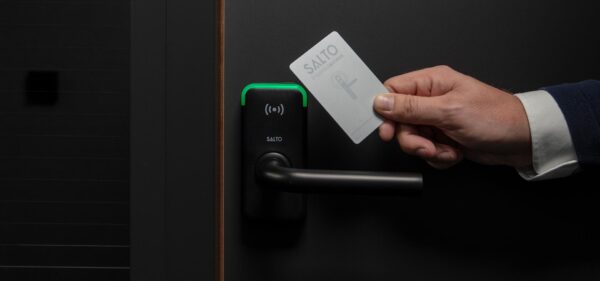

Clear, dual colour optical signalling indicates access authorisation. Acoustic signal optional.
High security via high resistance, hardened anti-drill protection.
Concealed fixing screws for greater security and improved aesthetics.
For indoor applications: quick and easy install makes it ideal for retrofits.
Wide range of handles, configurations and door retrofit cover plates to meet the installation needs.
Covers door thicknesses: From 35mm up to 120mm.
Dimensions: 127mm x 58,5mm x 22,5mm.
Reversible handle, left or right electronic lock.
Clutch escutcheon; when unlocked handle moves freely.
Handle rotation: 45º.
DIN 18251 standard doors prepared for DIN 18250 standard mortise locks.
Initial max. 4º pre-turn. Salto recommends the use of a mortise lock with a maximum 4º pre-turn.
Compatible with European profile cylinders.
Handle compatibility: 16mm Ø.
Square spindles available: 8mm, 8mm split, 9mm and 9mm split.
